Cooling Design Detailed Results

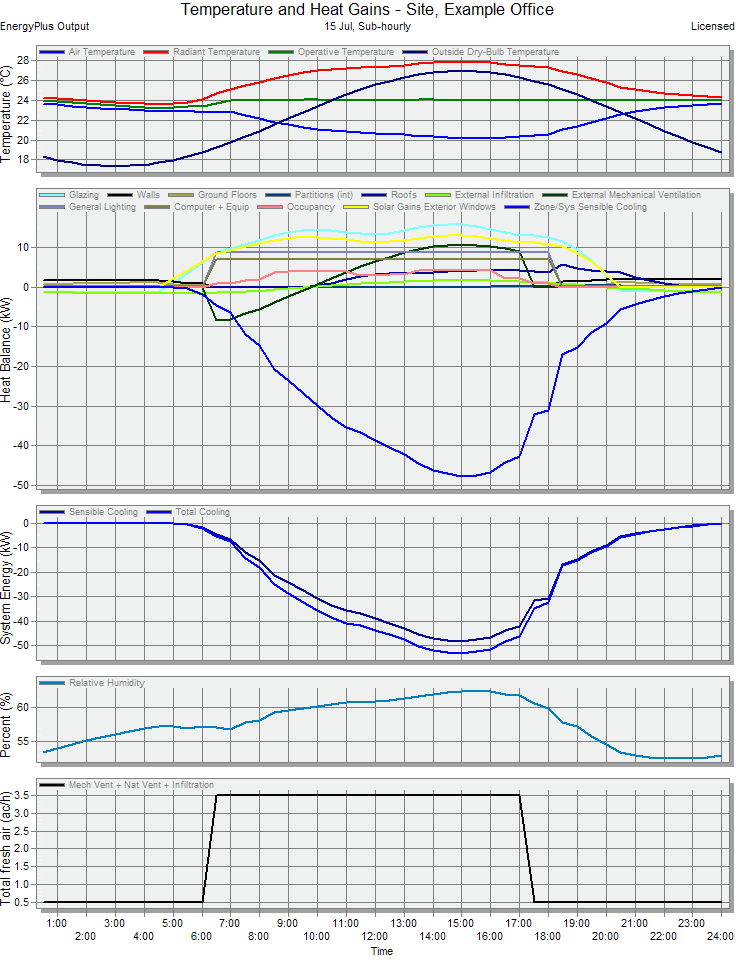

The 'Analysis' tab has detailed half-hourly cooling design results (displayed as a line graph by default).



For more on how the output is calculated see: Calculation of DesignBuilder Output from EnergyPlus Report Variables.





For windows without an interior shading device this heat flow is equal to:



+ [Convective heat flow to the zone from the zone side of the glazing]

+ [Net IR heat flow to the zone from zone side of the glazing]

– [Short-wave radiation from zone transmitted back out the window]

+ [Conduction to zone from window frame and divider, if present]



Here, short-wave radiation is that from lights and diffuse interior solar radiation.



For windows with an interior shading device this heat flow is equal to:



 [Convective heat flow to the zone from the air flowing through the gap between glazing and shading device]

+ [Convective heat flow to the zone from the zone side of the shading device]

+ [Net IR heat flow to the zone from the zone side of the glazing]

+ [Net IR heat flow to the zone from the zone side of the shading device]

– [Short-wave radiation from zone transmitted back out the window]

+ [Conduction to zone from window frame and divider, if present]



Airflow

System Heat Flows (Compact HVAC only)

These heat flows are plotted on the System Energy axes:





Surface heat gain data refers to heat transfer from the inside surface of the building elements to the zone.



You can also customise the data and the way it is displayed using the Display Options panel.
