Parametric Analysis

DesignBuilder can automatically run multiple simulations automatically adjusting up to 2 variables to create design curves. Design curves can be very useful at conceptual stages of the design process to understand how building performance is affected by variations. DesignBuilder allows you to generate curves to show how performance parameters like carbon emissions and comfort vary as key elements of the building design vary. You can select up to 2 design variables. For example you might want to plot the cooling energy consumption for the base design with a range of window to wall % and glazing types variations. The selection of the design variables is done using the Variables tab of the Optimisation and Parametric Analysis Settings dialog. Click on the Parametric tab to carry out parametric simulations.

The design curves are generated by automatically running multiple simulations of the base design (i.e. the model defined on the edit screen) with variations applied at the building level.It is important to take into account how this data will be inherited to down to blocks, zones etc to ensure you are testing the design variants you think you are. For example if the Window to wall % was hard set at block level then changes in this data at building level would not influence the surfaces of the design variants and the results will indicate that the Window to wall % does not influence results (see Troubleshooting below).

Because there is no visual check on the state of the design variants the parametric function would normally be carried out on:

Well structured and checked models that have been set up to be compatible with parametric analysis, that is allowing the appropriate data to inherit from the building level parametric changes, or,
Smaller models where it is easy to see how data inherits.

Parametric simulation results are stored with a record of the change made to the base case to create it and this allows new variants to be added to the study without invalidating previous results.

The number of design variants that are tested for 2 variable tests is the number of variants for the first variable multiplied by the number for the second variable. The variations in the above example would be different combinations of Glazing type and Window to wall %. In all, 6 x 5 = 30 simulations would be required to generate the design curves in this example.

Tip: Parametric simulations can take a long time to complete and DesignBuilder can keep grabbing focus away from the window you are working in as it refreshes the progress bar. To avoid this you can minimise the main DesignBuilder window. If you have a dual core processor, you should now be able to continue working while the simulations continue.

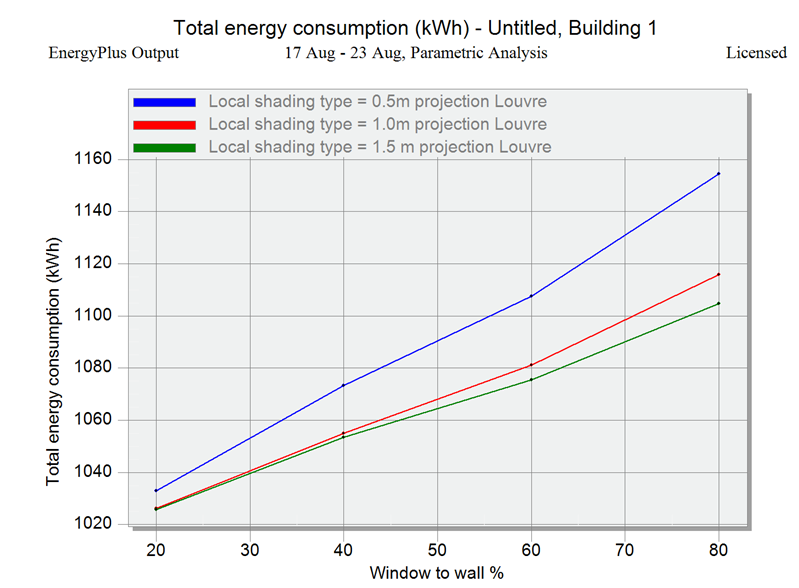

The graph above shows the diminishing returns with extra louvre projection from 0.5m to 1.5m.

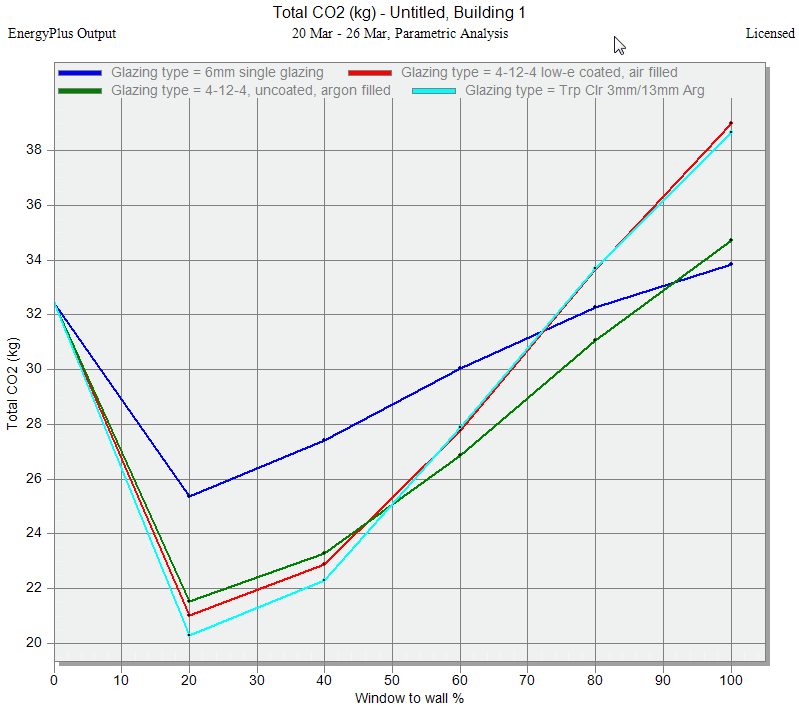

The image above shows a parametric analysis of total annual carbon emissions where glazing percentage is varied in a building with lighting control, heating and cooling for 4 different glazing types. It illustrates how optimum configurations can be identified using this approach.

Typical uses for parametric simulation are:

Generating design curves to assist with decision making at early design stages.
As a teaching aid to help students understand the impact of variations in the design.
To help communicate concepts with non-experts in building simulation, clients, architects etc. Architects often particularly appreciate the visual nature of the parametric data.
Design optimisation

Available KPIs

The following Key Performance Indicator (KPI) outputs are available for selection on the Data setting in the Display options panel:

1-Air temperature - average air temperature.
2-Radiant temperature - average mean radiant temperature.
3-Operative temperature - average operative temperature.
4-Fanger PMV - average predicted mean vote.
5-Pierce PMV ET - average Predicted Mean Vote (PMV) calculated using the effective temperature and the Pierce two-node thermal comfort model.
6-Pierce PMV SET - average Predicted Mean Vote (PMV) calculated using the 'Standard' effective temperature and the Pierce two-node thermal comfort model.
7-Pierce DISC - the average Discomfort index calculated using the Pierce two-node thermal comfort model.
8-Pierce TSENS - the average Thermal Sensation Index (PMV) calculated using the Pierce two-node thermal comfort model.
9-KsuTSV - the average Thermal Sensation Vote (TSV) calculated using the KSU two-node thermal comfort model.
10-Transmitted Solar Gains - total solar gains transmitted
11-Discomfort (all clo) - the total time when the zone is occupied that the combination of humidity ratio and operative temperature is not in the ASHRAE 55-2004 summer or winter clothes region. At building level this is the zone area weighted average of the zone discomfort hours.
12-Heating load - sensible heating load (in most cases = total heating load)
13-Cooling load - total cooling load (sensible + latent)
14-Total energy consumption - sum of all onsite fuel consumption energy, available for the whole building only.
15-Total CO2 - sum of operational carbon emissions for the building due to all building fuel consumption, available for the whole building only.

For detailed definitions of the above outputs see Detailed Results. The outputs either refer to averages or totals over the analysis period (i.e. the period set on the Simulation options dialog). The results cover the whole building, when viewing results at building level or just the currently selected zone, when viewing results at zone level. Note that outputs 14 and 15 are available only at building level.

Also note that the comfort-based outputs (PMV etc) are only available if Comfort outputs were requested on the Output tab of the Simulation options dialog.

Troubleshooting

A common question from beginners with the parametric simulations goes something like this:

Q: "Why do I get a flat line variation of energy consumption/CO2/max temperature when running parametric analyses"

A: The usual reason for parametric analysis generating a flat line variation is that there is no clear data inheritance path from the building level (where the parametric changes are applied) down to the individual zones/surfaces. For example, when using Window to wall% as a variable, you should make sure that:

The Window to wall% value is not hard set at block, zone or surface level in positions in the building where you wish the parametric changes to be applied.
Likewise, you are not using custom openings, whose opening areas cannot be modified as part of the parametric variation.
You have one of the Facade types set that can accurately calculate window areas based on % glazing (Preferred height and Continuous horizontal) and that this data is inherited from building down to surface level.

Q: "Is it possible to change the intervals for variables? For example is it possible to change "Window operation %" range from 20, 40, 60... to 10, 20, 30, 40..."

A: In the current version of the software there is no way to modify the intervals but this will be allowed in future versions.
