Import Floor Plans

DXF and other bitmap-type drawing data formats can be imported in the form of 2-D floor plan layouts. These can be used to trace block perimeters and partitions as a fast way to enter the model geometry. A typical process might go like this:



  1. Create new dsb site file, select location etc.
  2. Import floor plan data (described below).
  3. Go to block level and draw partitions by tracing over the drawing data.
  4. Import other DXF floor plans for other stories if necessary.



More information on Importing floor plans can be found in the Importing 2-D Floor Plans - Basic Drawing Tools 10 Tutorial

Import Drawing File Wizard

You can import 2-D DXF floor plan files created in AutoCAD or other CAD programs or the other bitmap-based drawing formats listed below. To start the process click on the Files > Import > Import 2-D drawing file menu command. This starts a the Import Drawing File Wizard.



With the import wizard open, select the File type to import. You can select from:





When you have selected the file type then select the file by clicking into the 'Filename' control. Click on the ellipsis button to open the file browser dialogue box.





  • Once the floor plan has been imported you can add blocks by tracing over the external perimeter corners of the floor plan.
  • DXF File types

    While on the Import drawing file wizard, if you selected a DXF file you must then select the units used in the DXF file from the Units drop list. You should be able to find this out from the creator of the CAD model - you are likely to get 'out of range' errors if you get it wrong. For example the CAD drawing may have been defined in millimetres and if you have selected metres as the units, when DesignBuilder tries to read the floor plan everything is 1000x too big and meters become kilometres! The DesignBuilder modeller has a range of several hundred metres and if any data falls outside this, the 'out of range' error occurs.



    You must also set the attachment height at which the 2-D DXF floor plan will be attached in the DesignBuilder model. The DXF data can be moved around the model once it is imported, so you do not need to know the exact attachment height at this stage - you can import the DXF data at zero height and move it to the correct location using the Move command. Click on the 'Next' button to set up layer visibility:

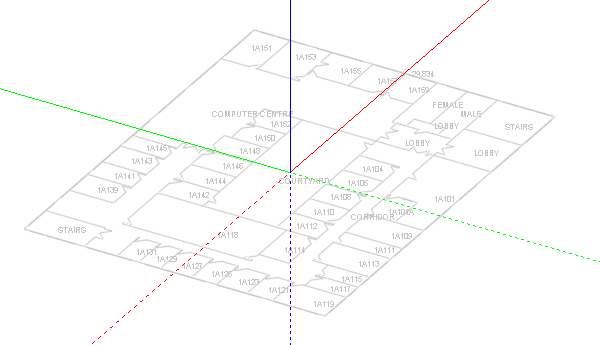

    You can use these controls to switch off unnecessary layers in the DXF data. As you check/uncheck the checkboxes you will see the effect of the change in the Edit view under the Wizard. Click on the 'Finish' button to import the data:

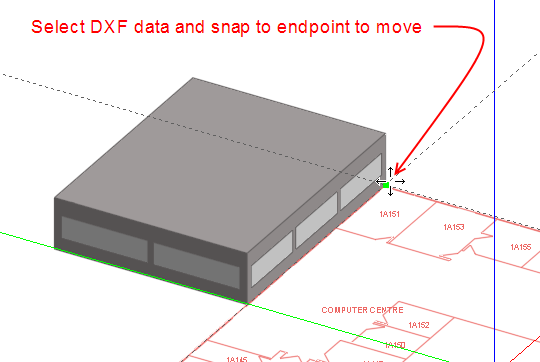

    At the building level, you can select, move and delete DXF data. When you select DXF data, you may need to zoom in to make the selection. You can move DXF file in 3-D and snap the data to the edges of blocks or end-points of construction lines:

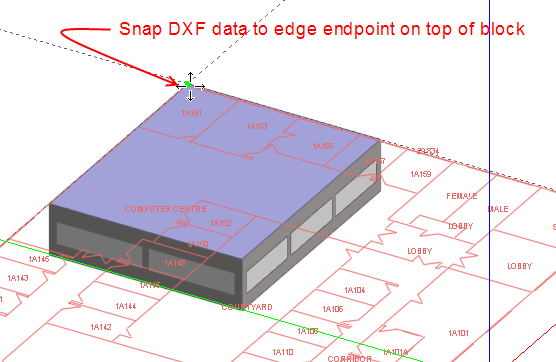

    Move the DXF data on top of the existing block and snap to an edge end-point:





    When you have imported the DXF data you can use the Measure tool to check that the dimensions are correct.



    Import DXF floor plans for other stories if necessary. Note that only one set of DXF data can be imported at a time. Once the CAD data has been imported into the model, the source DXF file is no longer needed by DesignBuilder and can be moved or deleted.

    Editing DXF data

    Once the DXF data has been imported to the model, it must be selected to allow these operations:





    Also the Set X-axis for imported DXF and Scale DXF drawing menu commands are available from the Edit menu when DXF data is loaded.

    Set X-axis for imported DXF

    When the command is started click twice to define the end points of a line in the direction of the X-axis on the imported DXF data. After the operation the DXF data is rotated to align with the DesignBuilder X-axis. Normally DXF data will already be orientated to the grid and this command is not required.

    Scale DXF drawing

    This command allows you to scale the DXF data to be larger or smaller. This may be necessary if the scale of the DXF data was unknown at the import stage. When the command is started click twice to define the end points of a reference line on the DXF data of known length (e.g. a dimension arrow or known length on a building wall). Then either move the cursor to define the new length of the reference line and click again or type in the dimension of the reference line. So a typical sequence might be:



    1. Start Edit > Scale DXF drawing command.
    2. Single click on one end of a large dimension line.
    3. Single click on the other end of the dimension line.
    4. Type in the dimension in m or ft (depending on the international units setting) followed by <Enter>.

    Bitmap-based File Types

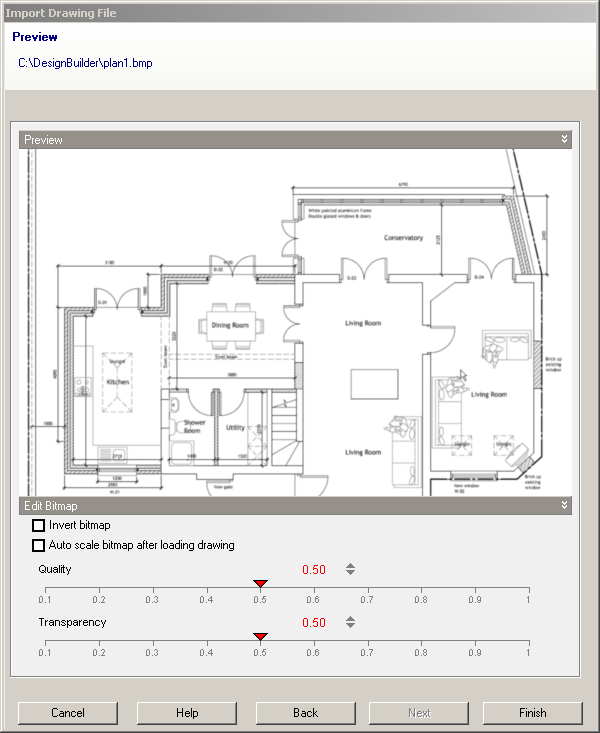

    When the file type is one of the bitmap based formats (PDF, BMP, JPG, PNG, GIF, TIFF collectively referred to here as 'bitmap') the next page of the Wizard provides a preview of the drawing and some options.

    Invert bitmap

    Check this option if you wish the colours in the bitmap to be inverted. For example if the picture is white on a black background then it will generally be best to invert these for use in DesignBuilder.

    Auto scale bitmap after loading drawing

    If you wish the 'scale bitmap' command to be automatically started when the Import Drawing File Wizard in closed then check this option.

    Quality slider

    By reducing the number of pixels in the bitmap it is possible to significantly reduce the size of the imported drawing data and hence speed subsequent drawing 'scale' and 'rotate' operations. The default Quality setting of 0.5 gives a good trade-off between image size and readability but if the drawing file is particularly large you may decide to reduce the quality to reduce the memory overhead or, if the drawing is difficult to read you could increase Quality.

    Transparency slider

    You can control the transparency of the drawing data from 0 to 1, the default is 0.5.





    Bitmap-based files may be used for:



    1. Existing buildings having paper floor plans that have been scanned into electronic format or,
    2. Early stage design sketch ideas are available only in bitmap form.



    Note: bitmap drawings do not allow end-point snap like DXF but can be an equally effective option for rapid geometry entry in DesignBuilder.

    Editing Bitmap data

    Once the floor plan data has been imported to the model, it must be selected to allow these operations:





    Also the Set X-axis for imported bitmap and Scale bitmap drawing commands are available from the Edit menu when bitmap data is loaded.

    Set X-axis for imported bitmap

    Sometimes scanned bitmap files are not exactly aligned to the X-axis and you can use this command to re-orientate the drawing. When the command is started click twice to define the end points of a line in the direction of the X-axis on the imported bitmap data. After the operation the bitmap data is rotated to align with the DesignBuilder X-axis.

    Scale bitmap drawing

    This command allows you to scale the bitmap data to the correct size using a known dimension in the bitmap image.

    When the command is started click twice to define the end points of a reference line on the bitmap data of known length (e.g. a dimension arrow or known length on a building wall). Then either move the cursor to define the new length of the reference line and click again or type in the dimension of the reference line. So a typical sequence might be:



    1. Start Edit > Scale bitmap drawing command.
    2. Single click on one end of a large dimension line.
    3. Single click on the other end of the dimension line.
    4. Type in the dimension in m or ft (depending on the international units setting) followed by <Enter>.



    Important Note: This process will always be necessary for bitmap drawing formats as the scale is not defined at the import stage.

    Partitions

    You can also use the imported floor plan data to draw internal partitions. To do this go to block level and draw partitions by tracing over using the floor plan partition data. You should take care to connect partitions to the external perimeters. A common mistake is to snap partitions to DXF data lying very close to the external perimeter but not close enough to create a connection with the external perimeter.

    Tip: It is generally best to switch off DXF snap in the Drawing options panel when drawing partitions at block level to avoid this problem. Be sure to switch it back on again when you have finished drawing partitions.
