Summer design weather data

Location tab on model data at Site level

You can select the 'confidence' of the design data, i.e. the probability that the design data will be at the very extreme of conditions encountered over recent years. This risk can be specified based on dry or wet-bulb temperatures, for 99.6, 99 and 98% confidence (i.e. 0.4, 1 or 2% chance of more extreme weather occuring).

The weather data used in cooling design calculations:

• Maximum outside dry-bulb temperature  - the maximum dry bulb air temperature over the day
• Minimum outside dry-bulb temperature  - the minimum dry bulb air temperature (nighttime)
• Wet-bulb temperature at the time of the maximum dry-bulb temperature.

Temperature Range Modifiers

The daily temperature profile used in the cooling design calculations is calculated from the maximum and minimum values using a modified sinusoidal curve and assuming that the maximum temperature occurs at 15:00 and the minimum at 5:00. You can change this behaviour by using the data described below.

Dry-bulb temperature range modifier type

The options are:

• 1-Default multipliers - where EnergyPlus automatically generates the outside dry-bulb temperature profile based on the data provided in ASHREA 2009 HOF.
• 2-Multiplier schedule - where you can define a day schedule that specifies a multiplier applied to the daily temperature range to create the proper dry-bulb temperature range profile for your design day. This works as described below.

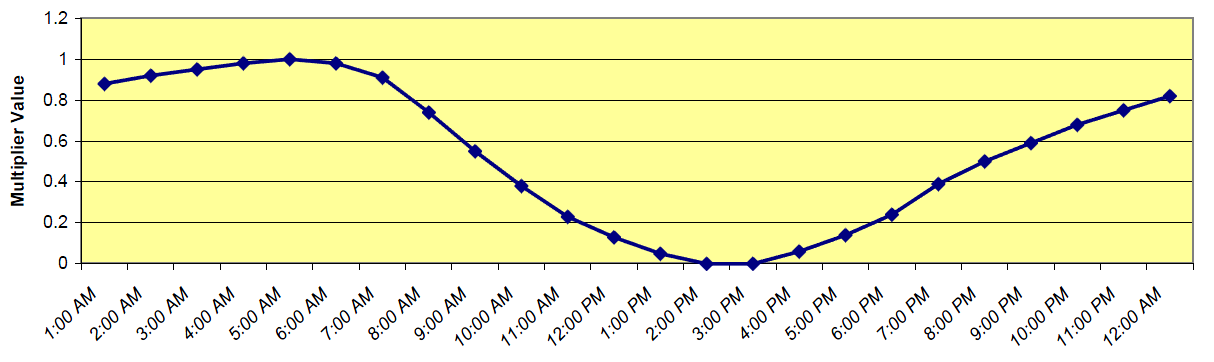

When using the 1-Default multipliers option, the multipliers are taken from the ASHRAE 2009 HOF. More specifically, EnergyPlus creates an air temperature for each timestep by using the entered maximum dry-bulb temperature in conjunction with the entered daily range and the above multiplier values. The actual equation used is shown below:

T_current = T_max - T_range x T_multiplier

where:

T_current = Air temperature of current hour of day

T_Max = User supplied Max Dry-bulb Temperature

T_range = The daily temperature range (T_max - T_min)

T_Multiplier = Range multiplier as shown on the above graph

The range multiplier values represent typical conditions of diurnal temperatures (i.e. the low temperature for the day occurring about 5:00 AM and the maximum temperature for the day occurring about 15:00. Note that EnergyPlus does not shift the profile based on the time of solar noon as is optionally allowed in ASHRAE procedures.

ASHRAE research indicates that dry-bulb and wet-bulb temperatures typically follow the same profile, so EnergyPlus can use the default profile to generate humidity conditions.

Dry-bulb temperature range modifier schedule

If you would like to override the default ASHREA profile you can select the 2-Multiplier schedule option for the Dry-bulb temperature range modifier type setting. This shows allows a Day schedule to be selected to define the range multipliers for each time of the cooling design day.

Cooling Design Solar Radiation Model

DesignBuilder uses the ASHRAE Clear Sky model described in ASHRAE HOF 2005 Chapter 31 for calculating the direct and diffuse solar radiation for each hour in the cooling design day. The details of this are described in the EnergyPlus Engineering reference guide.
