The domestic hot water (DHW) plant supply sub-loop incorporates one or more water heaters connected in series or parallel, flow splitter and flow mixer together with a circulating pump.
The sub-loop also includes a scheduled temperature setpoint manager which is set up by default to control the off-plant temperature at a constant 55°C.
The demand sub-loop incorporates a flow splitter and flow mixer in order that the loop can be connected to hot water outlets.

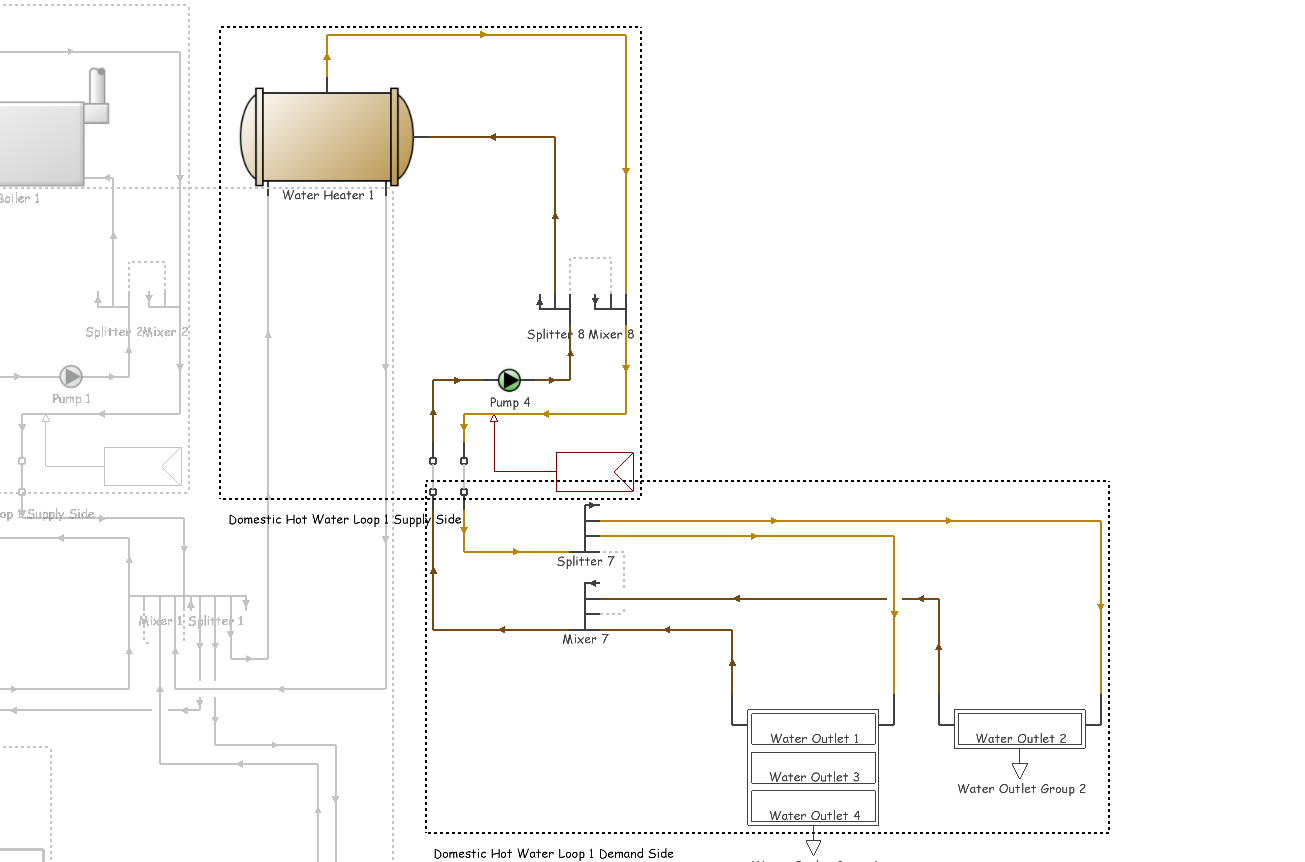

The image below shows a DHW hot water plant loop connected to a water outlet group.
