Glazing Components

Each Glazing Component consists of a series of glazing layers (Panes) separated from each other by Window Gas layers.

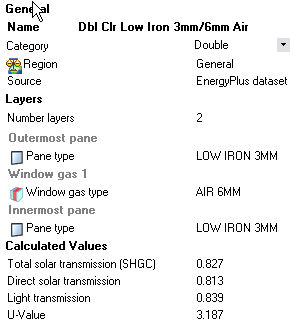

There are two tabs on the Glazing data dialog:

• Layers
• Calculated

Glazing component data can be accessed:

• from the Components tab on the opening screen (to view/edit library components if no file is open),
• from the Components tab in the Navigator panel (to view/edit model components if a file is open),
• by double-clicking on the glazing icon on the Openings tab in the model data,
• by clicking on the Edit button when selecting glazing components from a list.
