Convert Blocks

To convert one or more blocks to a different Block type follow the steps below:

1. Navigate to building level.

2. Select the Outline, Building, or Component block(s) to be converted by clicking with the mouse.

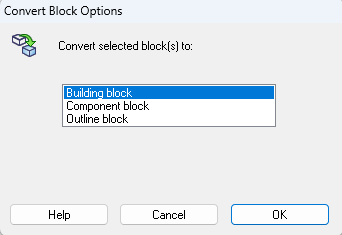

3. Click on the Convert selected block toolbar icon to open the Convert Block Options dialog as shown below.



4. Select the type of block to convert the selected blocks to. Choose from the options:



• Building block
• Component block
• Outline block

5. Press OK to complete the operation.

See also the Outline blocks, Boolean operations tutorial
