Summer design weather data

Location tab on model data at Site level

Cooling design and simulation autosizing simulations use simplified summer design weather based on worst case design days.

The weather data used in cooling design calculations is as follows:

• Maximum outside dry-bulb temperature  - the maximum dry bulb air temperature over the day
• Minimum outside dry-bulb temperature  - the minimum dry bulb air temperature (night time)
• Wet-bulb temperature at the time of the maximum dry-bulb temperature.

In addition for zone cooling load simulation autosizing this additional data is used:

• Dry bulb temperature range modifier type to help define the daily profile of the outside air temperature
• Wind speed and direction for use in Calculated natural ventilation autosizing calculations.

The degree of 'confidence' of the design data can be selected, i.e. the probability that the design data will occur in practice based on conditions encountered over recent years. This risk can be specified based on dry or wet-bulb temperatures, for 99.6, 99 and 98% confidence (i.e. 0.4, 1 or 2% chance of more extreme weather occurring).

The above data is described in more detail below.

Temperature Range Modifiers

The daily temperature profile used in the cooling design calculations is calculated from the maximum and minimum values using a modified sinusoidal curve and assuming that the maximum temperature occurs at 15:00 and the minimum at 5:00. You can change this behaviour by using the data described below.

Dry-bulb temperature range modifier type

The options are:

• 1-Default multipliers - where EnergyPlus automatically generates the outside dry-bulb temperature profile based on the data provided in ASHRAE 2009 HOF.
• 2-Multiplier schedule - where you can define a day schedule that specifies a multiplier applied to the daily temperature range to create the proper dry-bulb temperature range profile for your design day. This works as described below.

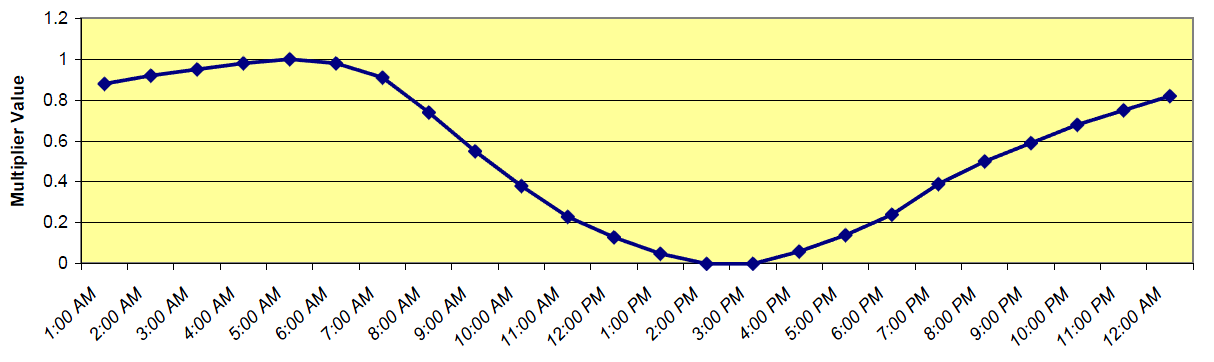

When using the 1-Default multipliers option, the multipliers are taken from the ASHRAE 2009 HOF. More specifically, EnergyPlus creates an air temperature for each timestep by using the entered maximum dry-bulb temperature in conjunction with the entered daily range and the above multiplier values. The actual equation used is shown below:

T_current = T_max - T_range x T_multiplier

where:

T_current = Air temperature of current hour of day

T_Max = User supplied Max Dry-bulb Temperature

T_range = The daily temperature range (T_max - T_min)

T_Multiplier = Range multiplier as shown on the above graph

The range multiplier values represent typical conditions of diurnal temperatures (i.e. the low temperature for the day occurring about 5:00 AM and the maximum temperature for the day occurring about 15:00. Note that EnergyPlus does not shift the profile based on the time of solar noon as is optionally allowed in ASHRAE procedures.

ASHRAE research indicates that dry-bulb and wet-bulb temperatures typically follow the same profile, so EnergyPlus can use the default profile to generate humidity conditions.

Dry-bulb temperature range modifier schedule

If you would like to override the default ASHRAE profile you can select the 2-Multiplier schedule option for the Dry-bulb temperature range modifier type setting. This shows allows a Day schedule to be selected to define the range multipliers for each time of the cooling design day.

Wind Data

Wind speed

This is the wind speed to be used for calculating the exterior convective heat transfer coefficients and for use (only in Calculated natural ventilation autosizing simulations) for calculating the exterior wind pressure along with the surface wind press coefficients.

Wind direction

Used only for only in autosizing simulations of Calculated natural ventilation models for calculating the exterior wind pressure along with the surface wind press coefficients.

Design Temperature Period

The design month for cooling design and autosizing simulations is not always clear from the outset and indeed is often different for different parts of the same building. You can therefore select up to 12 design months to be used in cooling design and autosizing simulations.

Design temperature period

You can choose to enter design data for either 1 or multiple months:

• 1-Single design month where a single set of worst case design data is used for cooling design and autosizing simulations. In this case the design data is typically for the month of July in the Northern hemisphere and January in the Southern hemisphere.
• 2-Multiple design months where design data for more than one month is used for cooling design and autosizing simulations. In this case the range of months to be used are selected on either the Cooling design calculation options or Model options dialog and the design data to be used for each month is specified here on the Location tab.

Note: The details of the design day(s): day of the month, the month range and day of week to be used for the Cooling design analysis can be defined on the Model options and Cooling design dialogs.

Note: DesignBuilder is supplied with a wide range of design data suitable for use with both of the above 2 options for over 6,400 locations around the world. The data supplied is based on the ASHRAE 2013 design data set and is licensed from ASHRAE.

Cooling Design Solar Radiation Model

DesignBuilder uses the ASHRAE Clear Sky model described in ASHRAE HOF 2005 Chapter 31 for calculating the direct and diffuse solar radiation for each hour in the cooling design day. The details of this are described in the EnergyPlus Engineering reference guide.
