This air loop is similar to the Generic single duct air loop but instead of a Generic air handling unit, the supply sub-loop contains a Packaged unitary heat pump component which incorporates DX heating and DX cooling coils together with a supplementary electric heating coil and consequently does not require any plant or condenser loops to be defined.

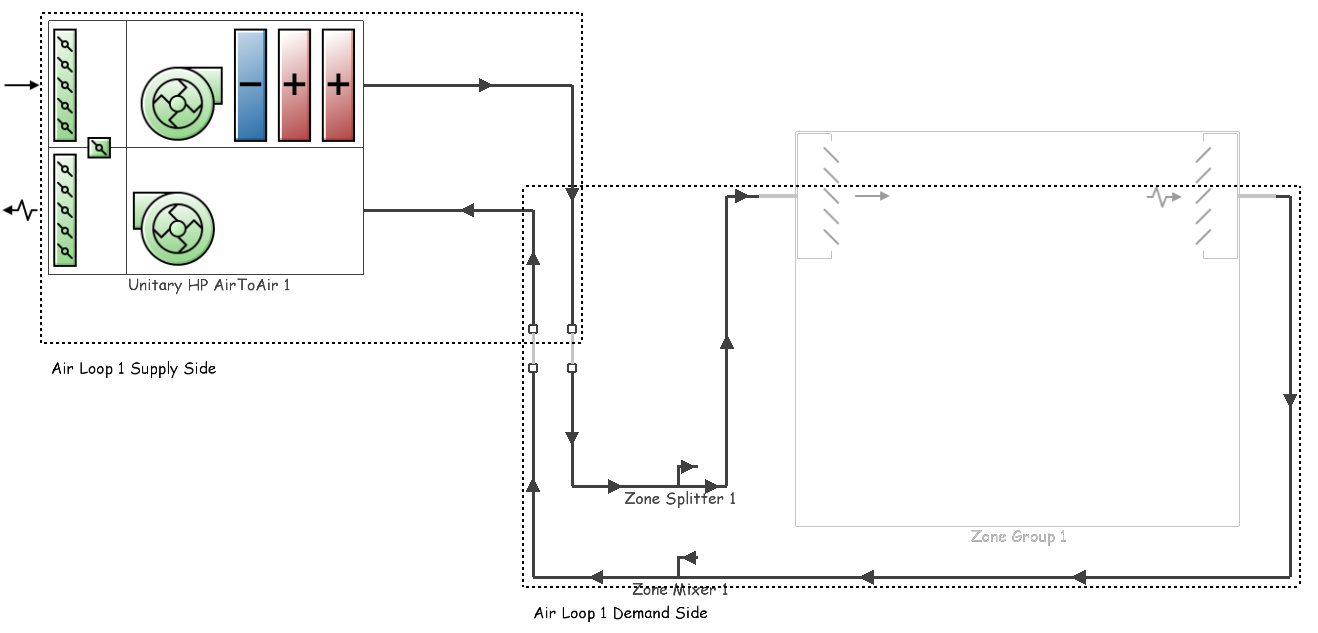

The image below shows a unitary heat pump air loop connected to a Zone group.
See also Air Loop Data
