View Rotation

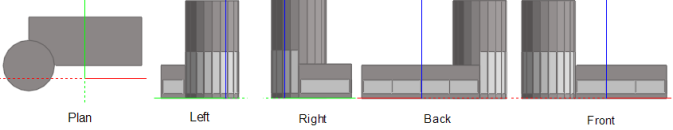

DesignBuilder provides several pre-defined standard view rotations:

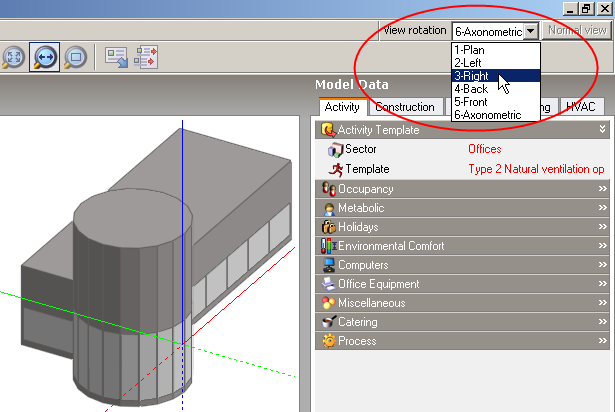

You can select one of these standard views from the view rotation drop list:

The default 'Axonometric' setting is designed to provide a good general 3-D view of the various components at each model level.

Alternative ways to access the view rotation commands are:

• For Axonometric view, press the A keyboard key.
• For Plan view, press the P keyboard key.
• For Right view, press the R keyboard key.
• For Left view, press the L keyboard key.
• For Back view, press the B keyboard key.
• For Front view, press the F keyboard key.
