Construction Model Data

Construction tab in model data


DesignBuilder uses construction components to model the conduction of heat through walls, roofs, ground and other opaque parts of the building envelope . Constructions can be selected on the Constructions model data tab to define the thermophysical and visual properties of the various internal and external surface elements in the building. From the Construction model data tab, you can access data on:



Open the headers to enter construction details where they are different from those loaded from the template. Any changes you make that are different from the template data originally loaded shown in bold red.


See the Constructions 1 and Constructions 2 Model Data Tutorials


General Construction and glazing

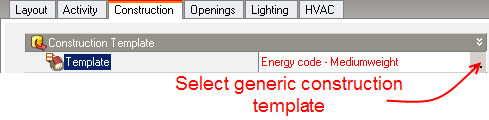

When you have the General Construction and glazing model option set, you can load generic Construction data by clicking on the Template option under Construction Template and then by clicking on the '...' at the right of the line (below).




When you make a selection from the list of Construction templates data from selected template is loaded to the model.

Pre-design Construction and glazing

Alternatively if you have the Pre-design Construction and glazing model option set, generic constructions can be loaded using the sliders shown below. In this case you are restricted to the 4x3 construction templates from the <System> Construction templates category identified by the combination of Insulation and Thermal mass selected on the sliders. For example in the screenshot shown below data will be loaded from the 'Energy code - Mediumweight' template.




Or in either case you can use the Load data from template tool.
